GROHE DreamSpray
Product Catalog
Rainshower 310 shower system THM
Model: 26647000
Rainshower System

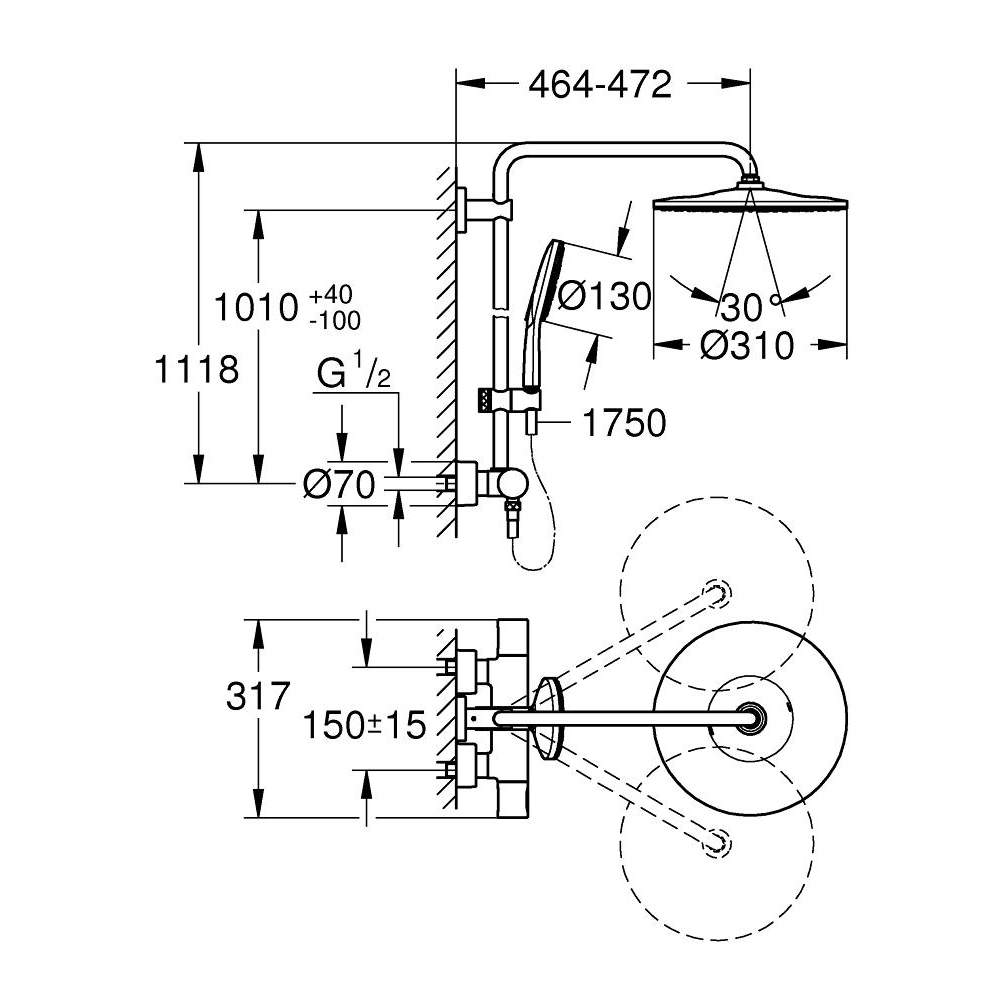

Dimensional Drawing
Technical Details
Product Description
Consisting of:
horizontal swivable 450 mm projection shower arm
exposed thermostatic shower
with Aquadimmer function
allows change between:
head shower Rainshower Mono 310
with ball joint
rotation angle ± 15°
Rainshower SmartActive 130 hand shower 3 sprays
adjustable height via gliding element
including performance grip
Silverflex shower hose 1750 mm
GROHE TurboStat compact cartridge with wax thermoelement
GROHE SafeStop safety button at 38°C
(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C included
GROHE CoolTouch prevents scalding on hot surfaces
GROHE DreamSpray perfect spray pattern
GROHE SmartTip showering spray selection via push of a ring
GROHE Long-Life finish
GROHE FastFixation upper bracket adjustable
SpeedClean anti-limescale system
suitable for instantaneous heaters from 18 kW/h
minimum flow rate 5 l/min.
Style
Cosmopolitan
Installation Type
Wall mounted exposed
Height (mm)
150.0
Length (mm)
1140.0
Width (mm)
370.0
Net Weight (kg)
8.1
Gross Weight (kg)
8.1
Colors & Finishes
Chrome
Collection
Rainshower System
Segment
Grand Luxury
Features & Technologies
GROHE TurboStat
SafeStop
Comfort Zone
GROHE CoolTouch (Thermostat)
