Eurodisc Cosmopolitan OHM basin L
Model: 23054003
Eurodisc Cosmopolitan

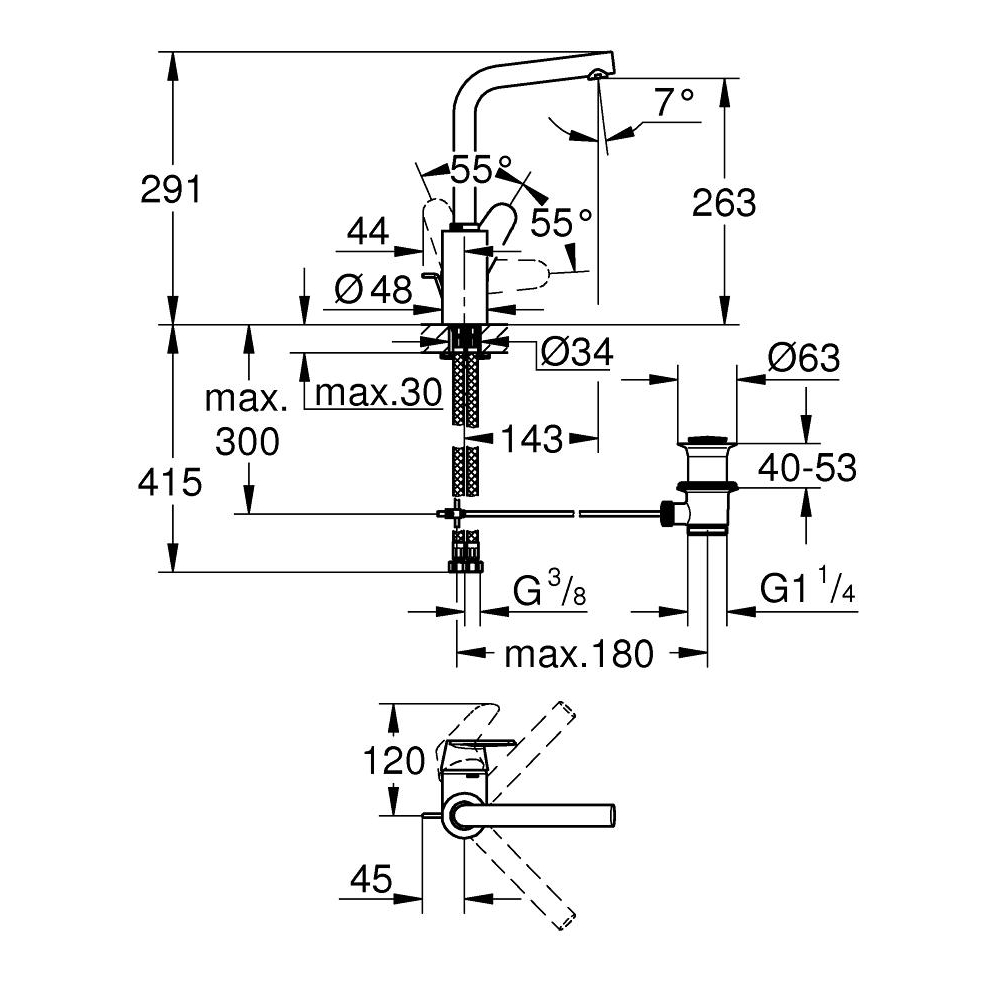

Dimensional Drawing
Technical Details
Product Description
monobloc installation
metal lever
covered lever fixing
GROHE SilkMove 35 mm ceramic cartridge
adjustable flow rate limiter
GROHE Long-Life finish
GROHE FastFixation Plus installation system
mousseur
swivel tubular spout with stop limiter
adjustable swivel area 0° / 150° / 360°
pop-up waste set 1 1/4″
flexible connection hoses
min. recommended pressure 1.0 bar
optional temperature limiter (46 375 000)
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
115.011
Length (mm)
364.998
Width (mm)
205.003
Net Weight (kg)
1.9
Gross Weight (kg)
1.9
Colors & Finishes
Chrome
Collection
Eurodisc Cosmopolitan
Segment
Luxury
Features & Technologies
GROHE SilkMove
Pop-up Waste
Separated inner water ways
High Spout (Bathroom)
