GROHE EcoJoy
Product Catalog
GRT 800 Cosmopolitan THM bath exp
Model: 34766000
Grohtherm 800 Cosmopolitan

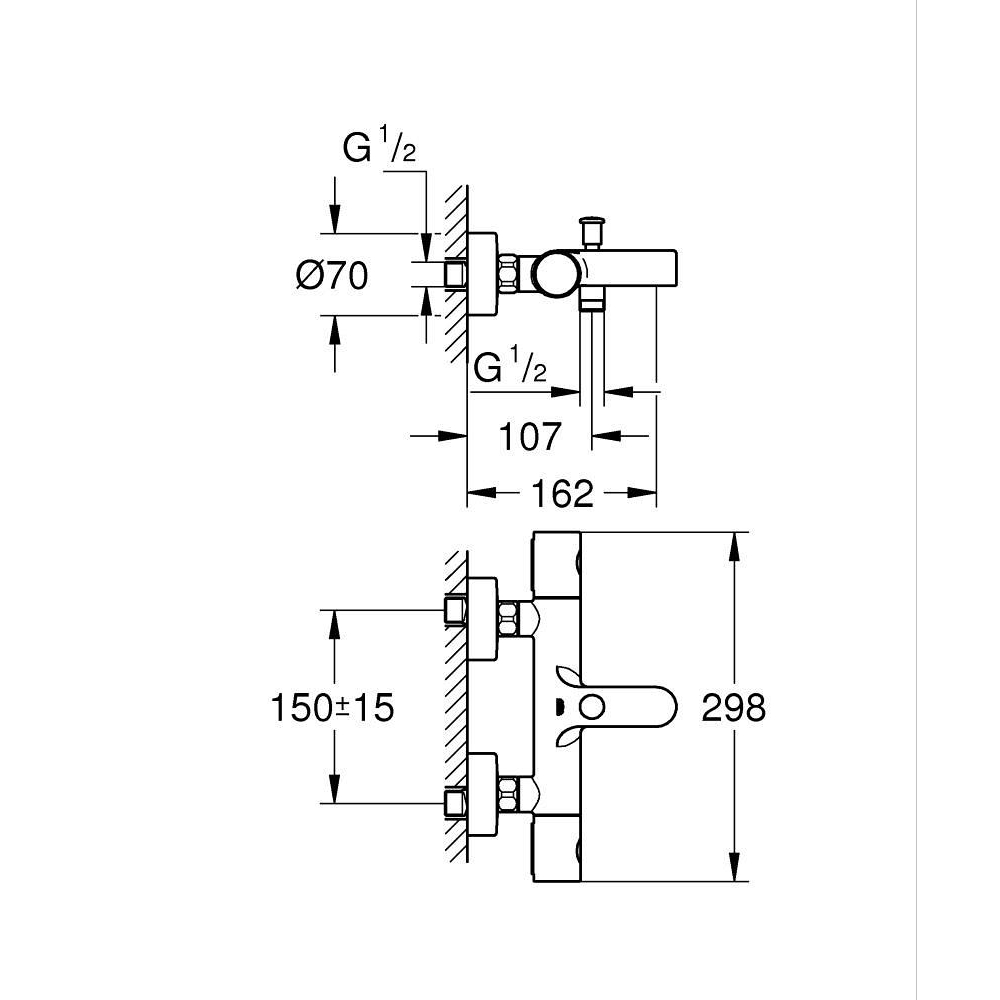

Dimensional Drawing
Technical Details
Product Description
wall mounted
GROHE Long-Life finish
GROHE MetalGrip ergonomically shaped metal handles
GROHE SafeStop safety button at 38°C
(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C included
GROHE TurboStat compact cartridge with wax thermoelement
integrated mixed water shut off
automatic diverter: bath/shower
volume handle with GROHE EcoButton
(economy button with individually
adjustable economy stop)
ceramic headpart 1/2″, 180°
shower bottom outlet 1/2″
mousseur
built-in non return valves
dirt strainers
protected against backflow
S-unions
metal escutcheon
GROHE EcoJoy – Less water, perfect flow
Style
Cosmopolitan
Installation Type
Wall mounted exposed
Height (mm)
110.0
Length (mm)
340.0
Width (mm)
185.0
Net Weight (kg)
2.605
Gross Weight (kg)
2.605
Colors & Finishes
Chrome
Collection
Grohtherm 800 Cosmopolitan
Segment
Mass
Features & Technologies
GROHE TurboStat
SafeStop
EcoButton
GROHE MetalGrip (with Ergorim)
