Product Catalog

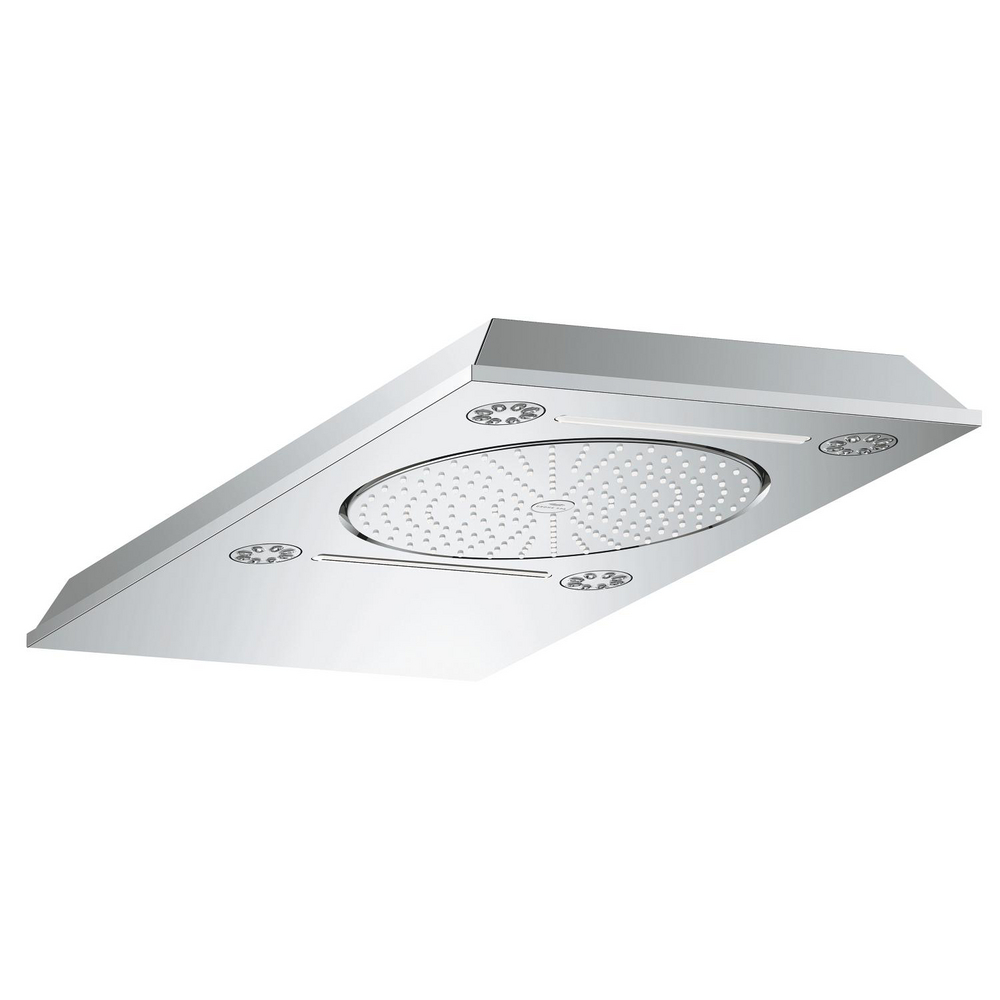

RSH Aqua 15" ceiling shower
Model: 26888000
Rainshower AQUA

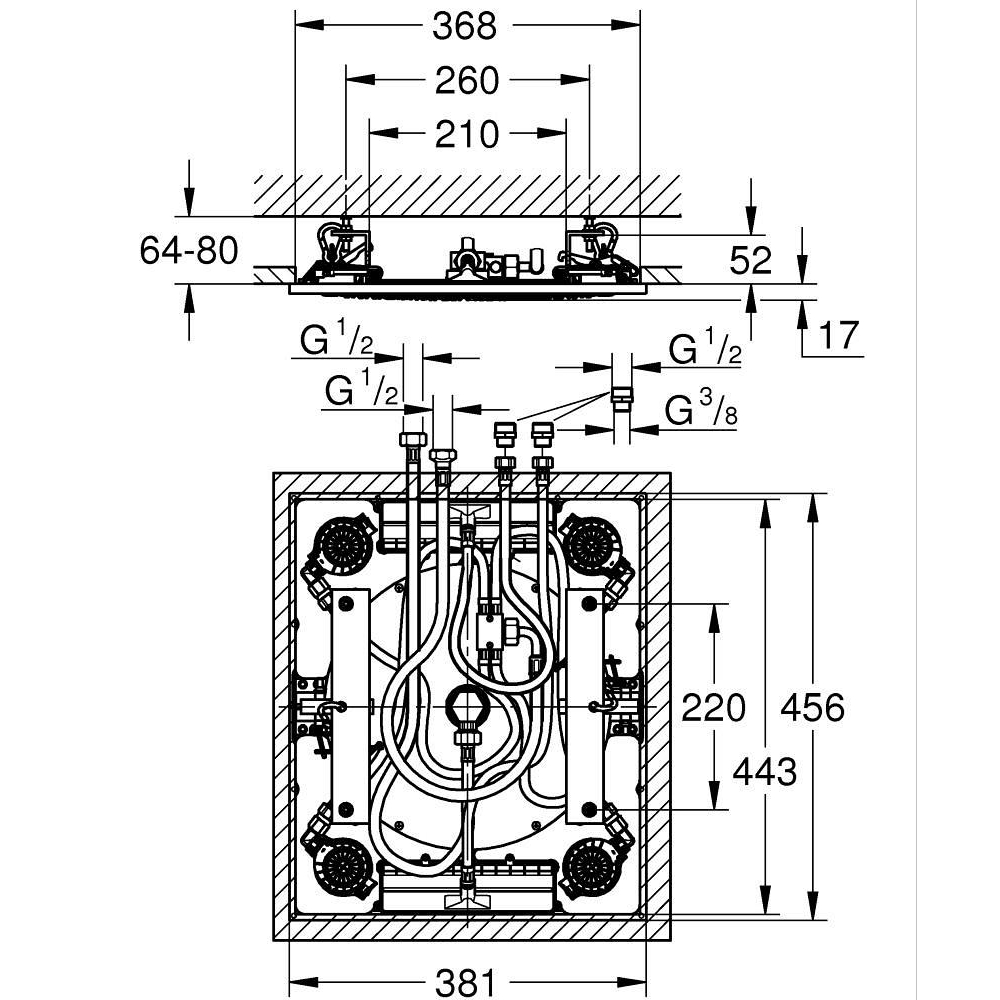

Dimensional Drawing
Technical Details
Product Description
spray patterns: Rain, Bokoma Spray, Waterfall and combinations
381 mm (width) x 17 mm (height) x 456 mm (depth)
material: metal
GROHE DreamSpray perfect spray pattern
GROHE Long-Life finish
GROHE XL Waterfall extra wide waterfall spray
SpeedClean anti-limescale system
flow of single spray at 3 bar:
1 x Rain spray 300 mm: approx. 15 l/min
2 x XL Waterfall: 1 x Waterfall 20 l/min, 2 x Waterfall 35.5 l/min
4 x Bokoma Spray with adjustment angle 20°: 19 l/min
the ceiling shower has to be controlled by 3 or 4 outlets + 1 hand shower outlet and the performance of the waste must be of sufficient size (more than 53 l/min)
Style
Cosmopolitan
Installation Type
Kid system
Height (mm)
140.005
Length (mm)
519.989
Width (mm)
470.002
Net Weight (kg)
9.34
Gross Weight (kg)
9.34
Colors & Finishes
Chrome
Collection
Rainshower AQUA
Segment
Grand Luxury
