Tempesta 200 shower system OHM bath CN
Model: 26305002
Tempesta System

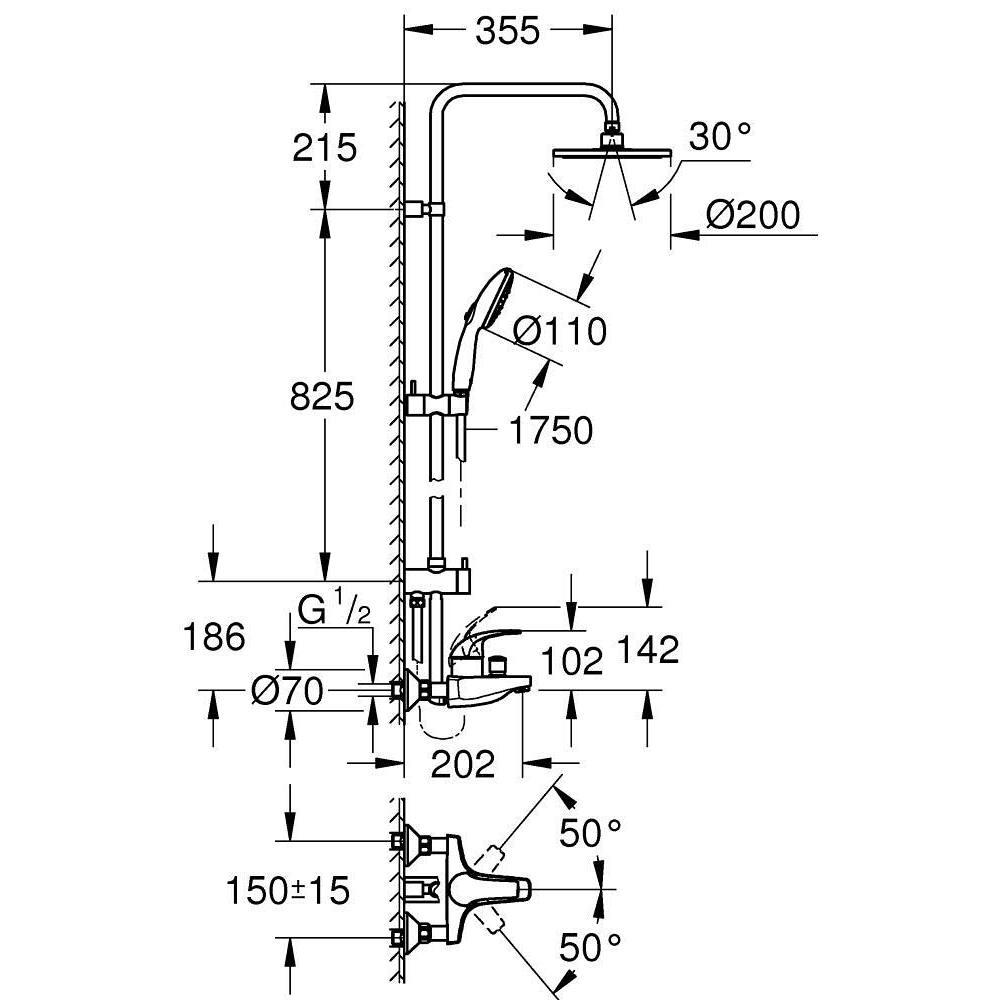

Dimensional Drawing
Technical Details
Product Description
with short shower rail for installation in showers
Consisting of:
horizontal 355 mm shower arm
exposed single-lever shower mixer
with diverter
allows change between:
head shower Tempesta Cosmopolitan 200 (27 541)
Rain spray pattern
with ball joint
rotation angle ± 20°
bath inlet
separate diverter for hand shower
hand shower Tempesta 110 (28 261)
spray patterns: Rain, Jet, Massage
adjustable height via gliding element
RotaflexTwistStop shower hose 1750 mm 1/2″ x 1/2″ (28 410)
distance between single-lever mixer and upper bracket: 1011 mm
maximum flow rate (at 3 bar): 13.5 l/min
GROHE SilkMove 46 mm ceramic cartridge
GROHE SmartSwitch – easily rotate the dial to enjoy your preferred spray option
GROHE DreamSpray perfect spray pattern
ShockProof silicone ring prevents damage caused by a shower falling
GROHE Long-Life finish
SpeedClean anti-limescale system
Inner WaterGuide for a longer life
TwistStop preventing the hose from twisting
suitable for instantaneous heaters from 18 kW/h
minimum flow rate 5 l/min.
min. recommended pressure 1.0 bar
Style
Contemporary
Installation Type
Wall mounted exposed
Height (mm)
155.0
Length (mm)
1160.0
Width (mm)
320.0
Net Weight (kg)
7.92
Gross Weight (kg)
7.92
Colors & Finishes
Chrome
Collection
Tempesta System
Segment
Mass
Features & Technologies
Rain spray
GROHE SilkMove
Massage Spray
GROHE SmartSwitch
