GROHE EcoJoy
Product Catalog
Allure Brill.PC SLM Basin M Caes.wht
Model: 24398AL0
Allure Brilliant Priv.Collec.

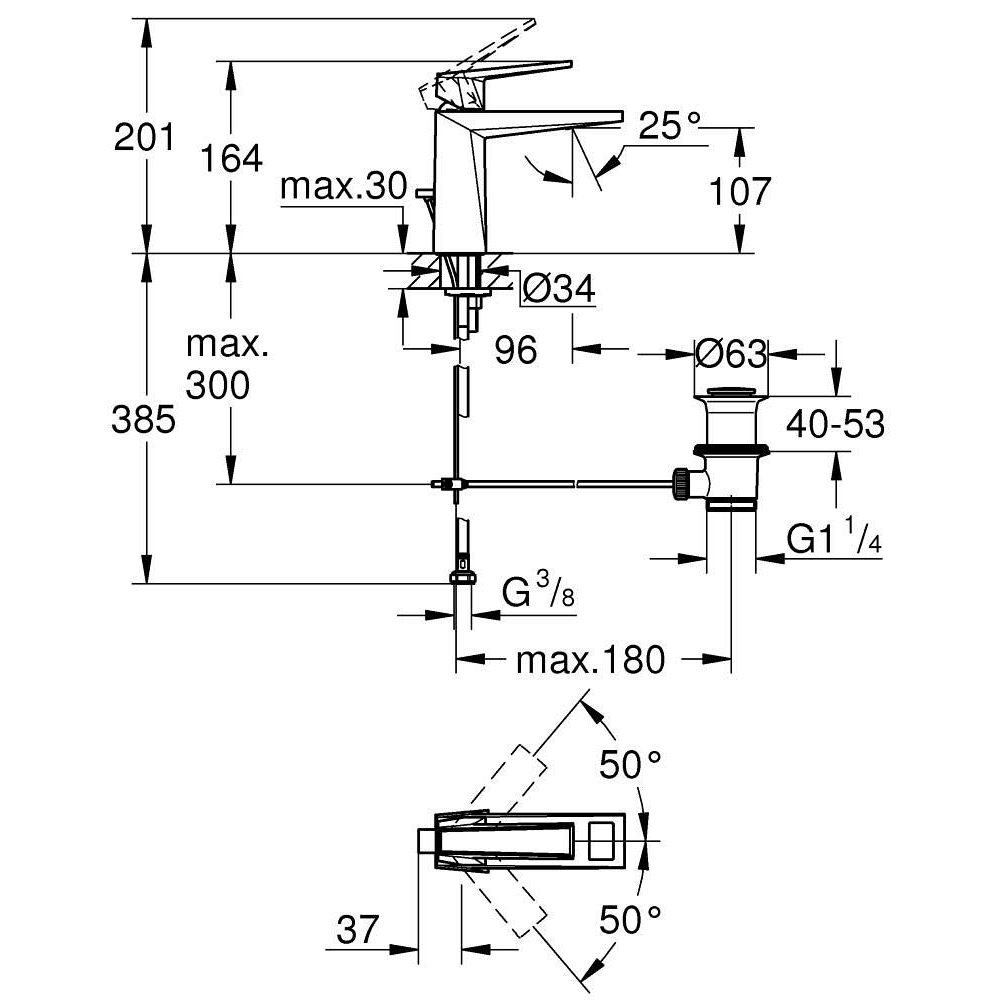

Dimensional Drawing
Technical Details
Product Description
lever with white Caesarstone inlay
monobloc installation
28 mm ceramic cartridge
with GROHE SilkMove
temperature limiter
GROHE Long-Life finish
GROHE FastFixation installation system
GROHE EcoJoy – Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
spout with integrated mousseur
pop-up waste set 1 1/4″
flexible connection hoses
recommended pressure 1.0 – 5.0 bar
min. recommended pressure 1.0 bar
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
72.0
Length (mm)
550.0
Width (mm)
226.0
Net Weight (kg)
1.935
Gross Weight (kg)
1.935
Colors & Finishes
Brushed hard graphite
Collection
Allure Brilliant Priv.Collec.
Segment
Private Collections
Features & Technologies
GROHE SilkMove
Pop-up Waste
Medium High Spout (Bathroom)
GROHE FastFixation (taps)
