High Spout (Kitchen)
Product Catalog
APC Knob 2hdl vessel fitting smth body
Model: 21142AL0
Atrio Private Collection

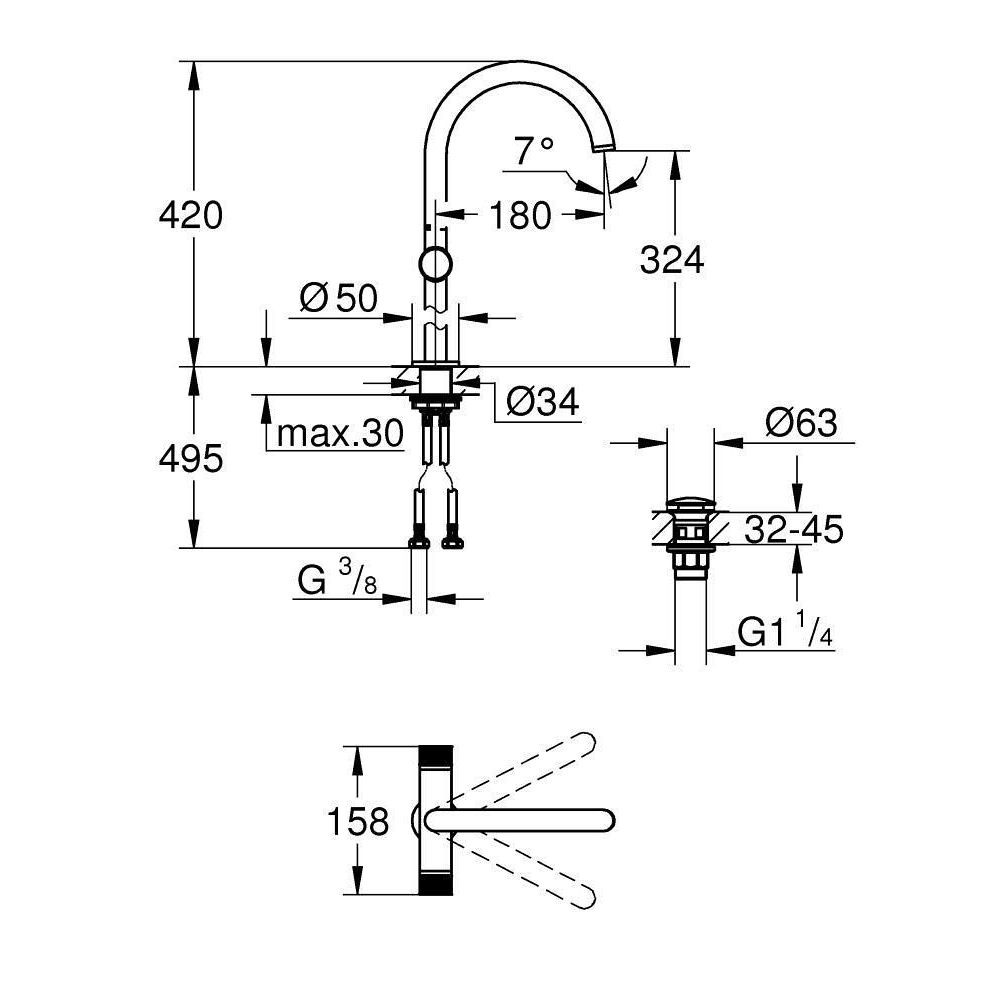

Dimensional Drawing
Technical Details
Product Description
for free-standing basins
ceramic headparts 1/2″, 90°
GROHE Long-Life finish
GROHE EcoJoy – Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
rapid installation system
swivel tubular spout with mousseur and stop limiter
adjustable swivel area 0° / 150° / 360°
Push-open waste set 1 1/4″
flexible connection hoses
knobs with metal inlay
can be combined with 48 456 000 or 48 457 000
Style
Contemporary
Installation Type
Deck mounted
Height (mm)
120.0
Length (mm)
580.0
Width (mm)
195.0
Net Weight (kg)
3.205
Gross Weight (kg)
3.205
Colors & Finishes
Brushed hard graphite
Collection
Atrio Private Collection
Segment
Private Collections
Features & Technologies
GROHE StarLight
Easy Installation System
GROHE SilkMove
Swivel Range 0/150/360
