Allure Brilliant 2hdl basin 3-h L
Model: 20629DC0
Allure Brilliant

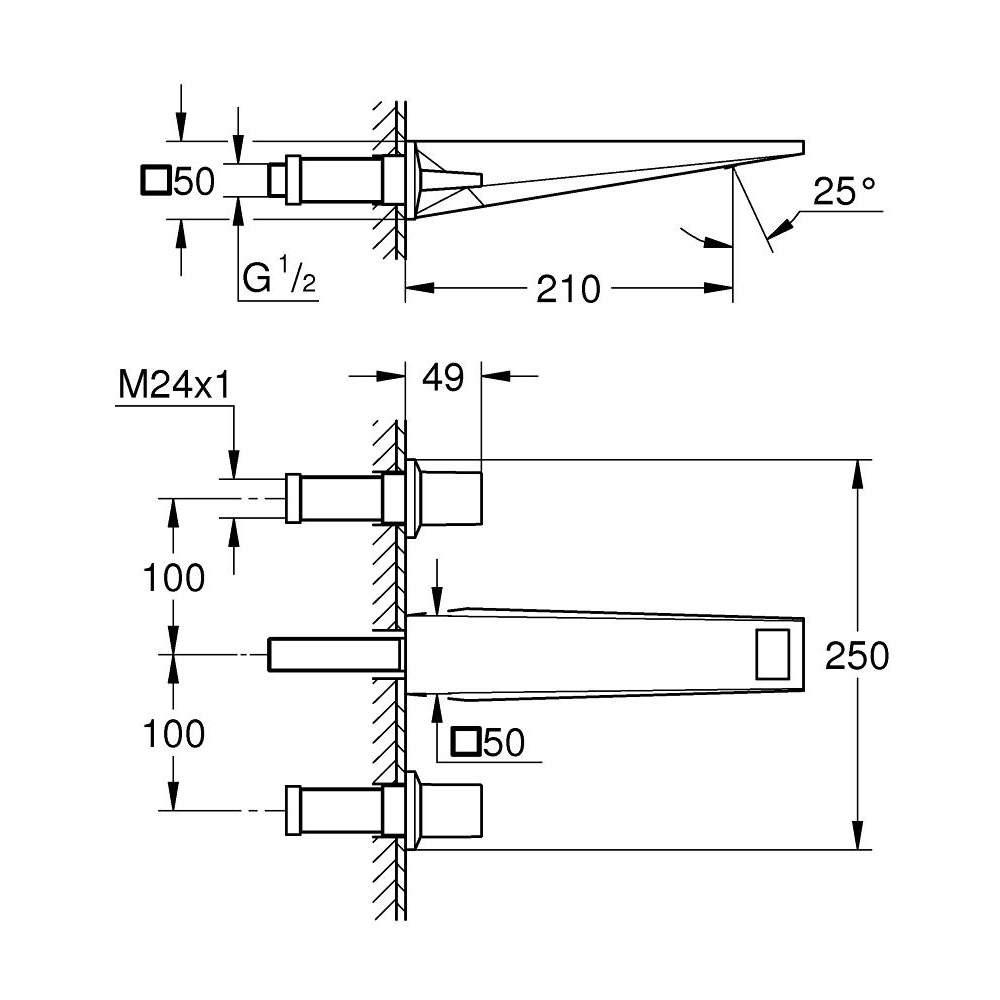

Dimensional Drawing
Technical Details
Product Description
wall mounted
without concealed body
to be used with rough-in set 29 025 002
valves hot/cold
with headparts 1/2″ – 90°
GROHE Long-Life finish
GROHE EcoJoy – Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
spout with integrated mousseur
projection 210 mm
min. recommended pressure 1.0 bar
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
100.0
Length (mm)
390.0
Width (mm)
200.0
Net Weight (kg)
2.555
Gross Weight (kg)
2.555
Colors & Finishes
Supersteel
Collection
Allure Brilliant
Segment
Grand Luxury
